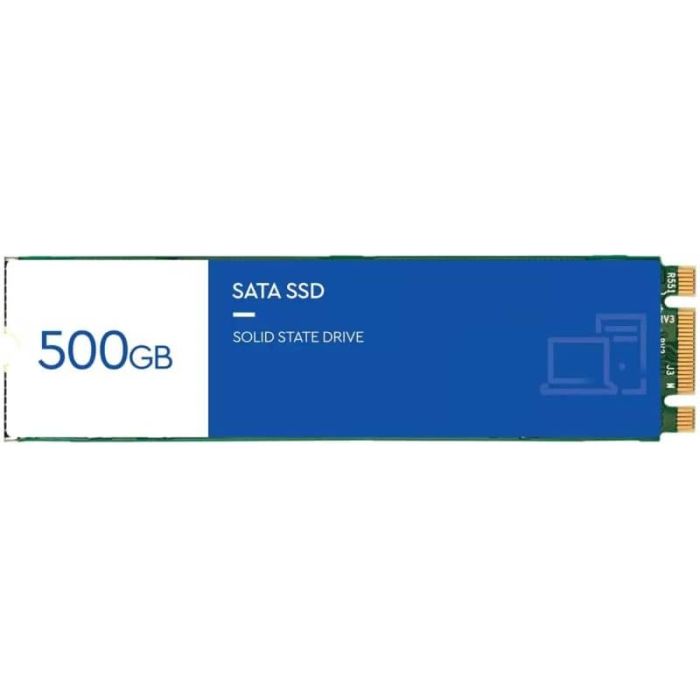

500GB Storage for Netgate 1537 and 1541
£85.00
In stock
SKU
NP-ACC-SSD-500GB_M.2_2280_15XX
500GB Storage for Netgate 1537 and 1541
SPECIFICATIONS:
| Device Type | Solid state drive - internal |
| Capacity | 500 GB |
| Form Factor | M.2 2280 |
| Interface | SATA 6Gb/s |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.38 mm |
| Weight | 4.8 g |
Performance |
|
|---|---|
| SSD Endurance | 200 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 510 MBps (write) |
| 4KB Random Read | 90000 IOPS |
| 4KB Random Write | 82000 IOPS |
Reliability |
|
| MTBF | 1,750,000 hours |
Expansion & Connectivity |
|
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | M.2 2280 |
Power |
|
| Power Consumption | 50 mW (active) ¦ 1800 mW (read) ¦ 2000 mW (write) ¦ 36 mW (sleep) ¦ 12 mW (DevSleep) |
Miscellaneous |
|
| Compliant Standards | UL, TUV, VCCI, BSMI, FCC, KC, Morocco |
| Enclosure Colour | Blue |
Manufacturer Warranty |
|
| Service & Support | Limited warranty - 5 years |
Environmental Parameters |
|
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine |
| Vibration Tolerance (operating) | 5 gRMS @ 10-2000 Hz |
| Vibration Tolerance (non-operating) | 4.9 gRMS @ 7-800 Hz |
All Specifications subject to change without notice.
