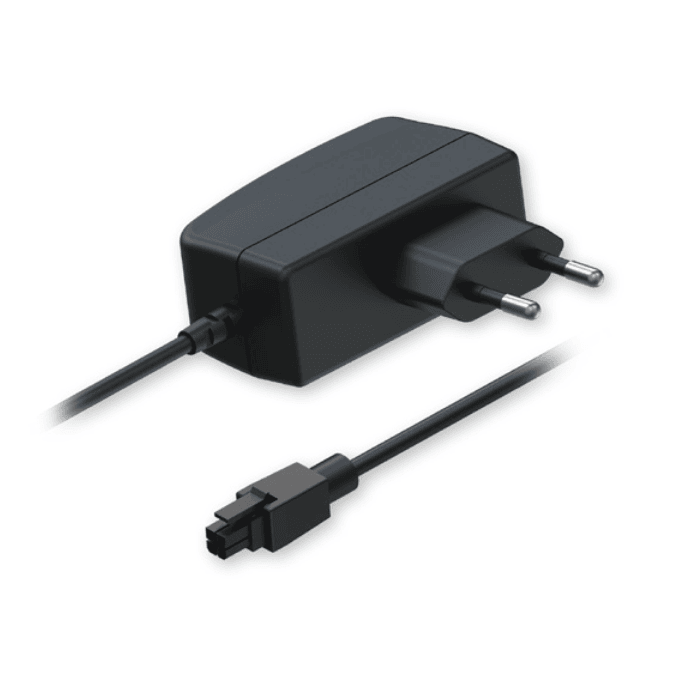

Compact and efficient 9 V DC Teltonika power supply with universal 100–240 V AC input, built-in protection, and compliance with international safety and efficiency standards.
Technical Data
GENERAL
Input voltage: 100 – 240 VAC
Input frequency: 50 / 60 Hz
Input current: 0.45 A
Input connector: EU (Type C)
Output voltage: 9 VDC
Output current: 1.0 A
Output connector: 4-pin, 3 mm pitch
ADDITIONAL
Input voltage range: 90 – 264 VAC
Input frequency range: 47 – 63 Hz
Maximum input inrush current: 40 A
Output voltage maximum deviation: 8.55 – 9.45 VDC
Short circuit protection: ✓
HIPOT (dielectric withstand test): Primary to Secondary: 3000 VAC
MTBF: 50,000 h
Certification:
Safety:
IEC 62368-1:2018 (CB Scheme)
EN 62368-1:2014+A11:2017
EMC:
EN 55032:2015+A1:2020;
EN IEC61000-3-2:2019+A1:2021;
EN 61000-3-3:2013+A1:2019+A2:2021;
EN 55035:2017+A11:2020;
CISPR 32:2015+A1:2019;
CISPR 35:2016
