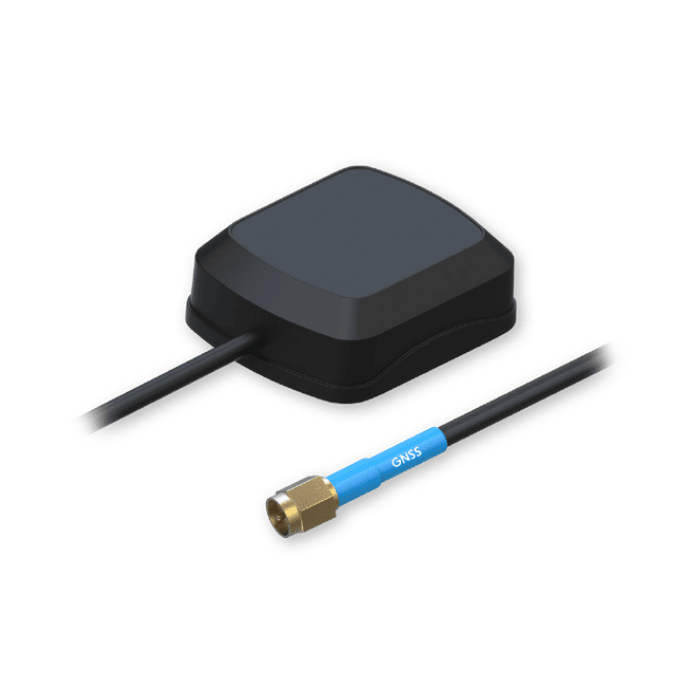

This high-performance Teltonika GNSS antenna provides stable signal reception across GPS and BeiDou frequencies.
PARAMETER
Frequency range: 1575 ~ 1602 MHz
Polarization: RHCP
Gain: 2.0 dBi
VSWR: 2.0
Impedance: 50 Ω
Axial ratio: 3 dB
LNA Gain: 26 ± 2 dB
LNA noise figure: 1.5 dB
Supply voltage: 2.2 – 5.0 VDC
Current consumption: 5 – 15 mA
LNA VSWR: 2.0
Cable: RG174, 3000 mm
Connector type: SMA Male
Mounting method: Adhesive
Operating temperature: –40 ~ +85 °C
Operating relative humidity: 95 %
RoHS compliant: ✓
