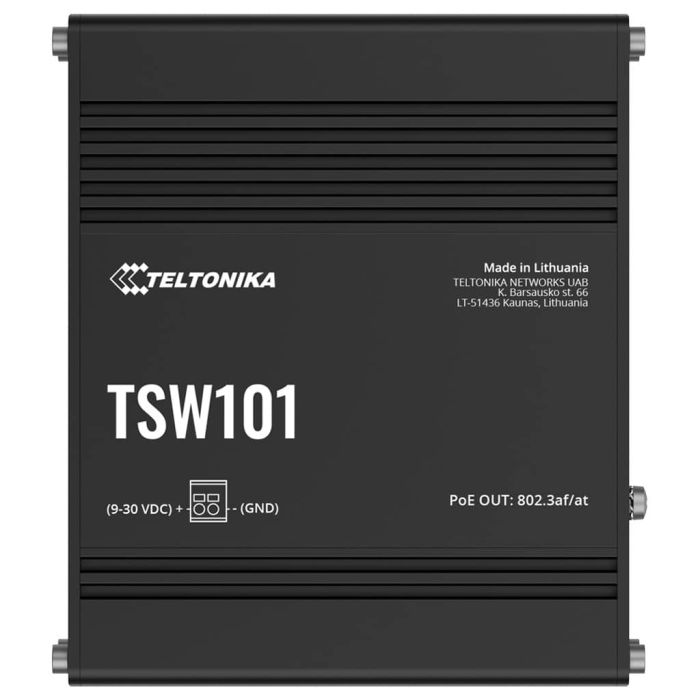

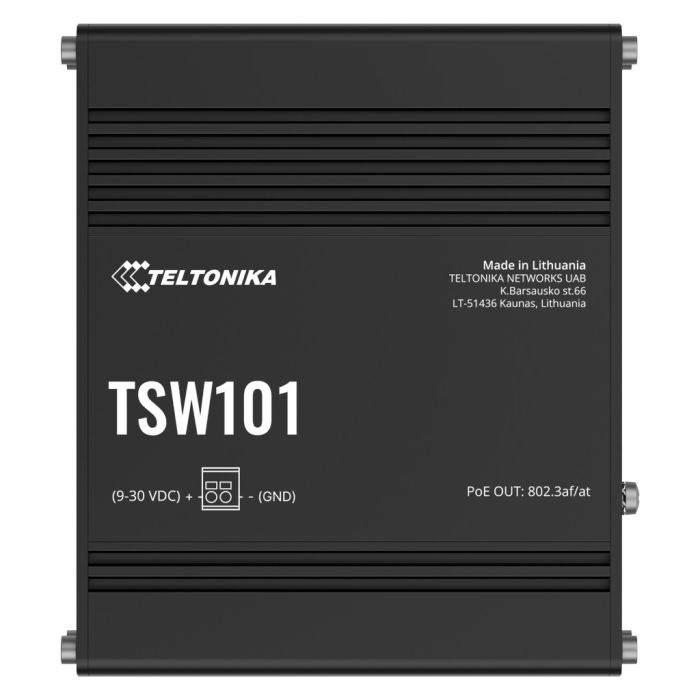

The Teltonika TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.
The Teltonika TSW101 is a five-port Gigabit Ethernet unmanaged switch built for in-vehicle use. It provides four PoE+ ports (supporting IEEE 802.3af and 802.3at) so it can both transmit data and power peripheral devices over Ethernet, and one uplink port for connecting to the main network.
It operates off typical vehicle power systems (12 V or 24 V), with a wide input range (9-30 V DC), so no extra adapters are required. The TSW101 is plug-and-play, designed for straightforward installation, and supports DIN rail or surface mounting.
It handles harsh conditions: designed for low and high temperatures (around -40 °C to +75 °C), housed in a full aluminium case, and robust enough for automotive environments. Power budget is up to 60 W total for PoE devices, allowing up to 30 W on individual ports. Its unmanaged nature means there’s no complicated setup: ideal where simplicity and reliability are priorities.
ETHERNET
ETH
5 × ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
INDUSTRIAL PROTOCOLS
Profinet
Class A conformance (optional order code)
POE OUT
PoE+ ports
Port 1–4
Standards
IEEE 802.3af (Type 1), IEEE 802.3at (Type 2), Alternative A
Max power per port (PSE)
30 W
Total PoE power budget (PSE)
60 W
Max Ethernet cable length
100 m
PERFORMANCE SPECIFICATIONS
Bandwidth
10 Gbps non-blocking
Packet buffer
128 KB
MAC address table
2K entries
Jumbo frames
Up to 9216 bytes
POWER
Connector
2-pin industrial DC power socket
Input voltage range
9–30 VDC
PoE-Out input voltage
9–30 VDC
Consumption
Idle: 0.64 W; Max: 2.31 W; PoE Max: 62.3 W
PSU
12 V or 24 V car battery-powered (no extra PSU required)
PHYSICAL INTERFACES
Ethernet
5 × RJ45 ports, 10/100/1000 Mbps
Status LEDs
1 × Power LED, 10 × ETH status LEDs
Power
1 × 2-pin industrial DC socket
Other
1 × Grounding screw
PHYSICAL SPECIFICATION
Casing
Aluminium housing
Dimensions
115 × 32 × 95 mm
Weight
384 g
Mounting
DIN rail, wall mount, flat surface (kits required)
OPERATING ENVIRONMENT
Temperature
-40 °C to 75 °C
Humidity
5% to 95% non-condensing
Ingress Protection
IP30
REGULATORY & TYPE APPROVALS
Regulatory
CE, REACH, RoHS, WEEE
Certifications
TSW101 CE, UKCA, FCC, IC, CB, RCM, E-Mark
EMC EMISSIONS & IMMUNITY
Standards
EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
Surge immunity (AC)
EN 61000-4-5:2014 + A1:2017
CS
EN 61000-4-6:2014
SAFETY
CE
EN IEC 62368-1:2020 + A11:2020; EN IEC 62311:2020; EN 50665:2017
