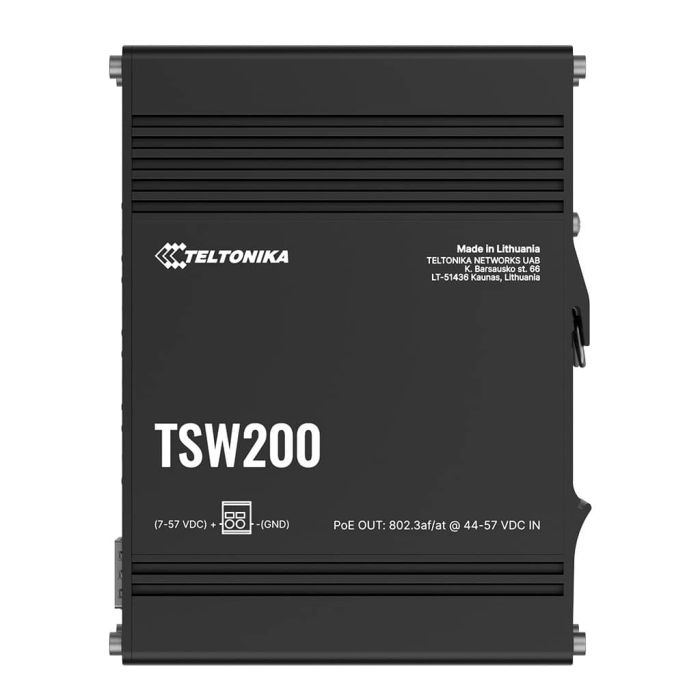

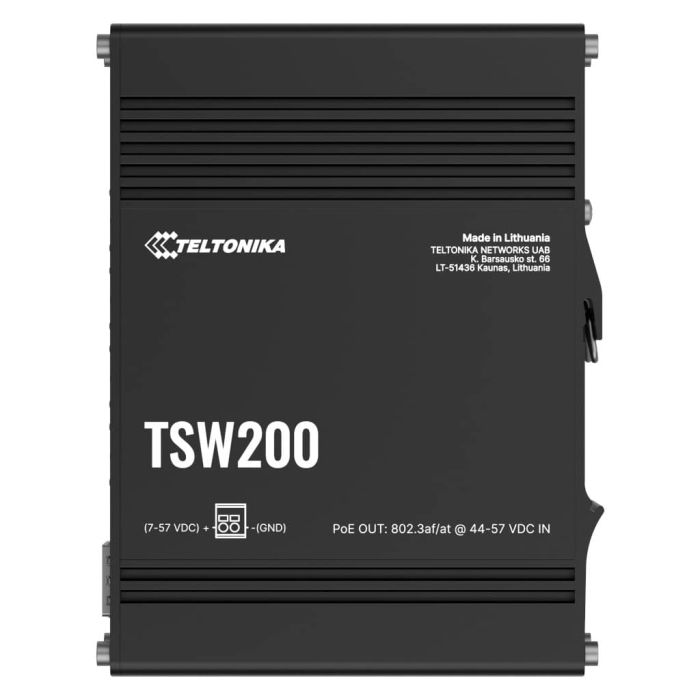

The Teltonika TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.
The Teltonika TSW200 is an industrial unmanaged switch that combines high-capacity wired connections and power delivery over Ethernet in one device. It offers 8 Gigabit Ethernet (RJ45) ports plus 2 SFP ports for fiber connections, so you can connect local devices with high bandwidth and extend reach over longer distances using fiber. It supports PoE standards 802.3af and 802.3at, with a total PoE power budget of up to 240 W and up to 30 W per port, meaning many powered devices can be run directly from the switch without separate power supplies.
It runs off a DC input (approx. 44-57 V for full PoE output) and draws very little power when idle. It’s built for operation across a wide temperature range (about -40 °C to +75 °C) and has an all-aluminium casing. For deployment, it can be mounted on DIN rails, walls, or placed flat, giving installation flexibility.
ETHERNET
ETH
8 × ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Fibre
2 × SFP ports
IEEE 802.3 standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
INDUSTRIAL PROTOCOLS
Profinet
Class A conformance (optional order code)
POE OUT
PoE+ ports
Port 1–8
Standards
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2)
Alternative A (from batch 42)
Alternative B (from batches 1–41)
Max power per port (PSE)
30 W
Total PoE power budget (PSE)
240 W
PERFORMANCE SPECIFICATIONS
Bandwidth
20 Gbps non-blocking
Packet buffer
128 KB
MAC address table
2K entries
Jumbo frames
Up to 9216 bytes
POWER
Connector
2-pin industrial DC power socket
Input voltage range
7–57 VDC
PoE-Out input voltage
44–57 VDC
Consumption
Idle: 1.81 W; Max: 5.5 W; PoE Max: 245.5 W
PHYSICAL INTERFACES
Ethernet
8 × RJ45 ports, 10/100/1000 Mbps
Fibre
2 × SFP ports
Status LEDs
1 × Power LED, 16 × ETH status LEDs, 2 × SFP status LEDs
Power
1 × 2-pin industrial DC socket
Other
1 × Grounding screw
PHYSICAL SPECIFICATION
Casing
Full aluminium housing
Dimensions
132 × 44.2 × 95.1 mm
Weight
517 g
Mounting
Integrated DIN rail bracket; wall/flat surface (kits required)
OPERATING ENVIRONMENT
Temperature
-40 °C to 75 °C
Humidity
5% to 95% non-condensing
Ingress Protection
IP30
REGULATORY & TYPE APPROVALS
Regulatory
CE, UKCA, CITC, ANRT, FCC, IC, CB
EMC EMISSIONS & IMMUNITY
Standards
EN 55032:2015 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019
