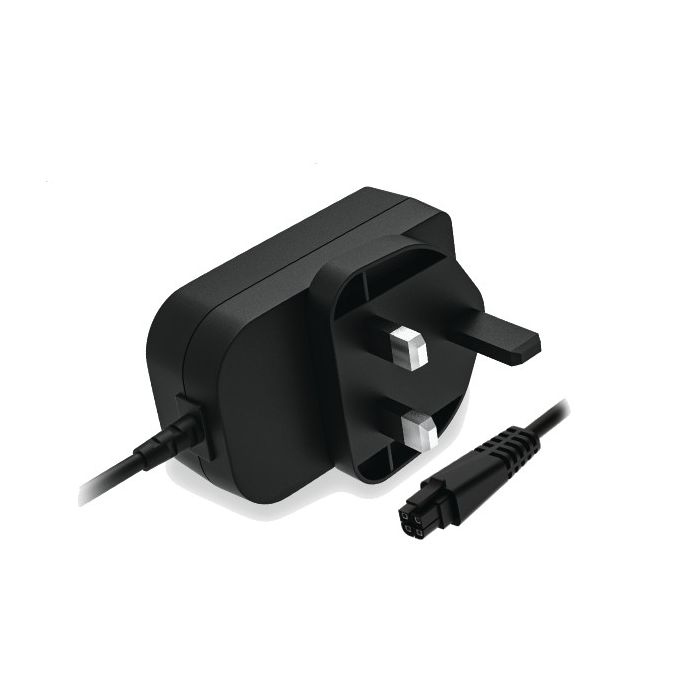

High-quality 12 V DC power supply designed for Teltonika RUTC50, RUTX12, and RUTX14 routers.
Ensures stable performance, energy efficiency, and reliable operation in demanding networking environments.
Technical Data
GENERAL
Input voltage: 100 – 240 VAC
Input frequency: 50 / 60 Hz
Input current: 0.8 A
Input connector: UK (Type G)
Output voltage: 12 VDC
Output current: 2.0 A
Output connector: 4-pin, 3 mm pitch
Weight: 120 g
ADDITIONAL
Input voltage range: 90 – 264 VAC
Input frequency range: 47 – 63 Hz
Maximum input inrush current: 60 A
Output voltage maximum deviation: 11.4 – 12.6 VDC
Short circuit protection: ✓
HIPOT (dielectric withstand test): Primary to Secondary: 4000 VDC
MTBF: 30,000 h
PSU efficiency standard: DoE Level VI
Certification: Safety: EN 62368-1:2014+A11:2017 EMC: EN 55032:2015, Class B; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013 Energy efficiency: EN 50563:2011+A1:2013; EN 50564:2011; 10 CFR 430 Appendix Z: 2015
