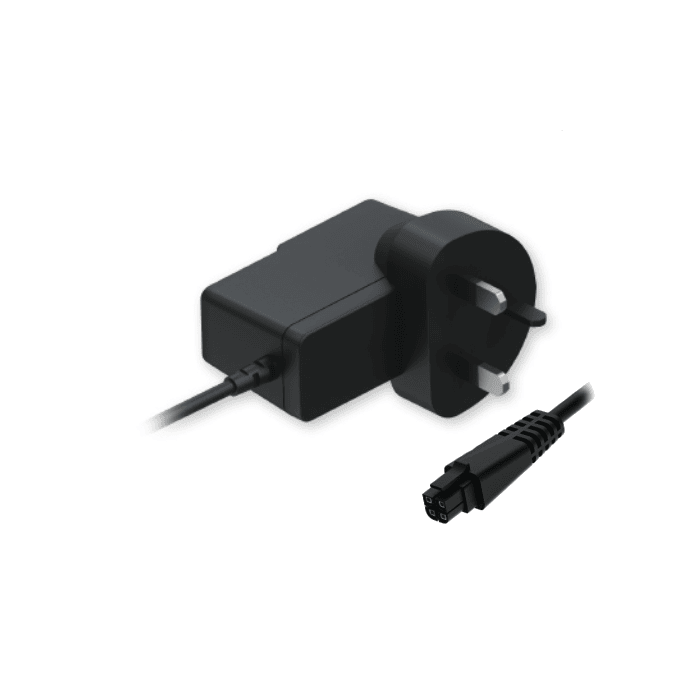

Compact and efficient 9 V DC Teltonika power supply with universal 100–240 V AC input, built-in protection, and compliance with international safety and efficiency standards.
Technical Data
GENERAL
Input voltage: 100 – 240 VAC
Input frequency: 50 / 60 Hz
Input current: 0.45 A
Input connector: UK (Type G)
Output voltage: 9 VDC
Output current: 1.0 A
Output connector: 2-pin, with cord end terminals
ADDITIONAL
Input voltage range: 90 – 264 VAC
Input frequency range: 47 – 63 Hz
Maximum input inrush current: 40 A
Output voltage maximum deviation: 8.55 – 9.45 VDC
Short circuit protection: ✓
HIPOT (dielectric withstand test): Primary to Secondary: 3000 VAC
MTBF: 50,000 h
Certification:
EN 62368-1:2014+A11:2017
EN 55032:2015, EN 55035:2017
EN 61000-3-2:2014, EN 61000-3-3:2013
IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321:2008 Annex C
