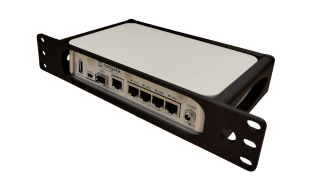

Pound-for-pound, the Netgate® 2100 security gateway appliance with pfSense® Plus software delivers unbeatable performance and flexibility in its class. It is ideal for home, remote worker, and small business deployments that require more compute resources to support the use of multiple pfSense add-on packages and VPN performance to support multiple user- and site-to-site connections. Featuring a Dual core ARM Cortex A53 1.2 GHz CPU, a dedicated 1 GbE WAN port (RJ45/SFP combo), (4) 1 GbE Marvell switch ports, 4GB of DDR4 RAM, and upgradeable storage. The 2100 has additional expansion slots available for DIY LTE, Wi-Fi or M.2 SSD expansion.
The Netgate 2100 is a compact and powerful desktop device. Leveraging a Dual core ARM Cortex A53 processor @ 1.2GHz and 4GB of DDR4 RAM, the Netgate 2100 shines as a 2.20 Gbps router, 964 Mbps firewall, or 254 Mbps IPsec VPN solution.
CPU: The Dual core ARM v8 Cortex-A53 1.2 GHz delivers 2.20 Gbps routing for common iPerf3 traffic and over 964 Mbps of firewall throughput.
Network Ports: Flexible 5-port combination including (1) 4-Port 1 GbE Marvell switch and a dedicated (1) GbE WAN RJ45/SFP combo port.
Storage: 8 GB eMMC Flash onboard (or optional 32 GB M.2 SATA 2242 SSD)
Memory: 4 GB DDR4, DDR4 memory allows more stable, higher transfer rates for memory-intensive applications (e.g. IDS/IPS).
Cooling: The passive cooling system and low power draw of the Netgate 2100 provides efficient thermal management and silent operation expected from smaller devices despite its significantly higher performance.
Performance Tests
L3 Forwarding
IPERF3 Traffic: 2.20 Gbps
IMIX Traffic: 594 Mbps
Firewall
(10k ACLs)
IPERF3 Traffic: 964 Mbps
IMIX Traffic: 249 Mbps
IPsec VPN
(AES-GCM-128 / AES-NI)
IPERF3 Traffic: 254 Mbps
IMIX Traffic: 90 Mbps
Netgate 2100 performance tests conducted with pfSense Plus software version 22.01
CPU
Marvell Armada 3720 (88F3720) ARMv8-A 64-bit Cortex A53 @ 1.2GHz with NEON SIMD and FPU
CPU Cores
Dual Core
Networking
One 1 Gigabit Ethernet WAN port (RJ45 / SFP Combo)
Four 1 Gigabit Ethernet LAN ports (Marvel 88E6141 switch)
LAN ports can be repurosed for additional WAN ports
Storage
8 GB eMMC Flash on board, factory-upgradable to 32 GB M.2 SATA 2242 SSD (not NVMe compatible) with SG-2100 Max
Desktop 1.7" (42.2 mm) tall x 4.25" (108 mm) deep x 6.8" (172.7 mm) wide
with integrated keyholes for wall mount
Cooling
Passive
Power
External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 2.0A, threaded barrel connector
AC Inlet: IEC320-C7 (2 PIN)
One US, UK, EU or ANZ power cord included
US Power Cord: NEMA 1-15P to IEC320-C7
UK Power Cord: BS 1363 to IEC320-C7
EU Power Cord: CEE7/16 to IEC320-C7
ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7
Environmental
32°F (0°C) to 122°F (50°C)
Certifications
CE, FCC (Class B), RoHS, UL, RCM, VCCI
LOW TOTAL COST OF OWNERSHIP
No artificial limits or add-ons required to make your system fully functional.
No additional usage or feature-based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
Low power requirements to help save you money.
This system is designed for a long deployment lifetime.
GROWS WITH YOU
From firewall to Unified Threat Management, get all the security features you need to protect your home or business.
Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
Add optional packages such as Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery and SquidGuard for anti-spam/anti-phishing and URL filtering. 1
Maximum Active Connections: 4,000,000
EASY GUI MANAGEMENT
Manage pfSense Plus software settings through our web-based GUI.
No fumbling with a command-line interface or typing arcane commands.
SECURE REMOTE ACCESS
Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect securely, or connect to the Cloud!
Use the built-in Amazon VPC Wizard to easily establish VPN connections with your Amazon EC2 cloud.
Best For:
Consumers
Remote Workers
Small to Medium-Sized Business Networks
Small to Medium-Sized Branch Office
Managed Service Provider / Managed Security Service Provider (MSP/MSSP) On-Premises Appliance
Router:
Policy-based routing
Multiple IP addresses per interface
Multiple WAN connections (with load balancing and failover)
Complex NAT mapping (outbound and inbound)
Concurrent IPv4 and IPv6 support
Optional multi-node High Availability (HA) clustering
Dynamic routing protocol support [w/pkg]
Firewall, Attack Prevention, & Content Filtering:
Extensive firewall rules
Stateful filtering & packet inspection
Per-interface configuration
Ethernet (layer 2) rule-based packet filtering
IP/DNS-based filtering and blacklisting [w/pkg]
IDS/IPS with Snort-based packet analyzer [w/pkg]
Layer 7 application detection and blocking [w/pkg]
Reverse proxy [w/pkg]
Geo/country blocking, IP block lists [w/pkg]
Configuration:
Setup wizard for initial configuration
Encrypted automatic backup to Netgate server
Easy configuration backup/restore
Multi-language support
VPN:
Site-to-site and remote access VPNs
IPsec, OpenVPN, WireGuard®
Split tunneling
IPsec policy-based and route-based protocol support
OpenVPN Data Channel Offload (DCO)
Intel IPsec Multi-Buffer (IIMB)
Intel QuickAssist Technology (QAT)
User Authentication & System Security:
User and group-based privileges
LDAP authentication
Automatic lockout after repeated attempts
Optional key-based SSH access
Traffic and bandwidth shaping
Captive portal with user data transfer quotas
External RADIUS authentication [w/pkg]
Monitoring & Reporting:
Customizable dashboard with widgets
Local monitoring graphs
Remote logging
Network usage monitoring [w/pkg]
Network diagnostics [w/pkg]
QAT and DCO are supported only on specific hardware models
Learn more about the power of pfSense Plus software here.
Manufacturer Warranty
Netgate appliances are covered by the manufacturer’s standard one-year "return to base" warranty. This means that products may need to be returned either to the manufacturer or to us for assessment, repair, or replacement.
Warranty Extensions
These warranty extension options and services are primarily intended for business customers. This focus reflects the needs of business-critical equipment, where minimal downtime and rapid product replacements are essential.
3 Year Warranty Enhance your peace of mind with our Extended Warranty, adding 2 extra years to the standard 1-year manufacturer’s warranty for a total of 3 years of coverage.
3 Year Advanced Replacement With Advanced Replacement Service, upon a valid warranty claim, ITG ships a replacement immediately, even before receiving the faulty unit, ensuring minimal business downtime. This option still extends the standard 1-year manufacturer’s warranty by 2 extra years, for a total of 3 years of coverage.
