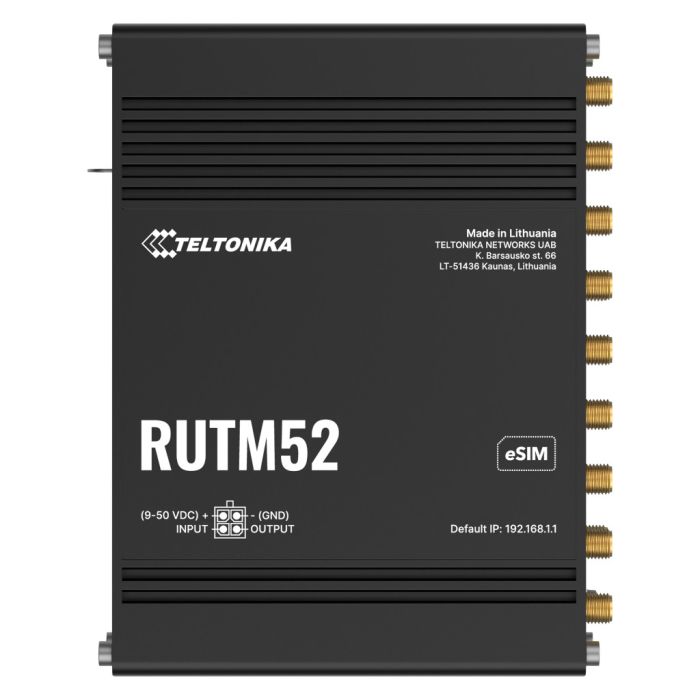

Teltonika RUTM52 5G Industrial Gateway
The Teltonika RUTM52 is a future-proof 5G router designed for mission-critical applications, featuring dual 5G modems, multi-WAN capabilities, and 4G LTE Cat 20 fallback. With dual SIM slots, eSIM support, and compatibility with SA and NSA 5G architectures, it ensures high-speed, uninterrupted connectivity today and years ahead. Load balancing, Wi-Fi 5, and five Gigabit Ethernet ports enhance performance, while RutOS with industrial protocols and various VPNs make it versatile for complex setups. Compatible with RMS, the RUTM52 is ideal for secure and efficient remote management.
The Teltonika RUTM52 is a dual-5G modem industrial router, built for ultra-high performance and redundancy. It supports two simultaneous 5G Sub-6GHz connections, providing combined bandwidth and ensuring always-on connectivity even if one link weakens or fails. When needed, it falls back to 4G LTE Cat-20 speeds. The router also features dual SIMs plus eSIM support for flexible carrier options and auto-switching (for reasons such as weak signal, roaming, data usage limits, etc.).
On the local networking side, it includes Gigabit Ethernet ports (both WAN and LAN), and dual-band WiFi 5 with MU-MIMO for wireless device support. There are many external antenna connectors (for both cellular, WiFi, and GNSS), enabling strong signal and precise location tracking.
It is built with a durable aluminium housing, a wide operational temperature range (approx -40 to +75 °C), robust power input (9-50 V), and options such as passive PoE.
MOBILE
Mobile module 2 × 5G Sub-6 GHz SA/NSA 2.1/3.3 Gbps DL (4×4 MIMO), 900/600 Mbps UL (2×2 MIMO); 4G (LTE): DL Cat 20 2.0 Gbps (4×4 MIMO) / UL Cat 20 200 Mbps; 3G: 42 Mbps DL, 5.76 Mbps UL 3GPP Release Release 16 eSIM Consumer eSIM; profile download/removal; up to 7 eSIM profiles; no data plans SIM switch Dual-modem functionality with independent SIM switching per modem. Auto-switch between physical SIM and eSIM on weak signal, data limits, roaming, or network issues. Both physical SIMs can operate simultaneously; switching is restricted to each modem’s SIM/eSIM. Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC SMS SMS status/configuration, Email ↔ SMS, SMS ↔ Email, SMS → HTTP, SMS → SMS, scheduled SMS, autoreply, SMPP USSD Send and read USSD messages Block/Allow list Operator block/allow list (by country or operator) Multiple PDN Use different PDNs for multiple network access/services Band management Band lock, used band status display SIM PIN code management Set, change, or disable SIM PIN APN Auto APN Bridge Direct bridge between mobile ISP and LAN device Passthrough Assign mobile WAN IP to a device on LAN Framed routing Support an IP network behind 5G UE
WIRELESS
Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) up to 867 Mbps (Dual Band, MU-MIMO) Wi-Fi security WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP; auto-cipher; client separation; EAP-TLS (PKCS#12); disable auto-reconnect; 802.11w PMF SSID/ESSID SSID stealth; MAC-based access control Wi-Fi users Up to 150 simultaneous connections Wireless features Mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition (802.11v), RRM (802.11k) Wireless MAC filter Allowlist, blocklist Wireless QR code generator Scan to join without entering credentials TravelMate Forward hotspot landing page to the next connected device
ETHERNET
WAN 1 × 10/100/1000 Mbps; IEEE 802.3/802.3u/802.3az; auto MDI/MDIX LAN 4 × 10/100/1000 Mbps; IEEE 802.3/802.3u/802.3az; auto MDI/MDIX
NETWORK
Routing Static; Dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP); Policy-based routing Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN VoIP passthrough support H.323 and SIP-ALG NAT helpers Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP & ICMP Firewall Port forward, traffic rules, custom rules, TTL target customisation Firewall status page View firewall statistics, rules, counters Port management View/enable/disable ports, toggle auto-config, change speed, etc. Network topology Visual map of connected devices Hotspot Captive portal; internal/external RADIUS; RADIUS MAC auth; SMS/SSO auth; internal/external landing page; walled garden; user scripts; URL params; user groups; per-user/group limits; user management; 9 customizable themes with upload/download DHCP Static & dynamic allocation; DHCP relay; server configuration & status; static leases (MAC wildcards) QoS / SQM Priority by source/destination, service, protocol or port; WMM; 802.11e DDNS >77 providers supported; manual configuration available DNS over HTTPS DoH proxy for secure DNS resolution Network backup Wi-Fi WAN, Mobile, VRRP, Wired options for automatic Failover Load balancing Balance Internet traffic over multiple WAN connections SSHFS Mount remote file system via SSH VRF support Initial virtual routing and forwarding (VRF) support Traffic Management Real-time monitoring, wireless signal charts, traffic usage history
SECURITY
802.1x Port-based network access control client Authentication Pre-shared key; digital certificates; X.509 certificates; TACACS+; Internal & External RADIUS; IP & login attempts block; time-based login blocking; random password generator Firewall Preconfigured rules via WebUI; unlimited via CLI; DMZ, NAT, NAT-T, NAT64 Attack prevention DDoS prevention (SYN flood, SSH, HTTP/HTTPS); port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN) VLAN Port- and tag-based VLAN separation Mobile quota control Data limit, customizable period, start time, warning limit, phone number WEB filter Blacklist for unwanted sites; Whitelist for allowed-only sites Access control Flexible control of SSH, Web interface, CLI, Telnet TPM TPM 2.0 identification & authentication module SSL certificate generation Let’s Encrypt, SCEP
VPN
OpenVPN Multiple clients and a server can run simultaneously; 27 encryption methods OpenVPN Encryption DES-CBC 64; RC2-CBC 128; DES-EDE-CBC 128; DES-EDE3-CBC 192; DESX-CBC 192; BF-CBC 128; RC2-40-CBC 40; CAST5-CBC 128; RC2-64-CBC 64; AES-128-CBC/CFB/CFB1/CFB8/OFB/GCM; AES-192-CFB/CFB1/CFB8/OFB/CBC/GCM; AES-256-GCM/CFB/CFB1/CFB8/OFB/CBC IPsec XFRM, IKEv1, IKEv2; 14 methods incl. 3DES, DES, AES128/192/256, AES128/192/256-GCM8/12/16 GRE GRE tunnel; GRE tunnel over IPsec PPTP, L2TP Client/Server instances; L2TPv3; L2TP over IPsec Stunnel TLS encryption wrapper proxy DMVPN Scalable IPsec VPNs; Phase 2 & 3; Dual Hub support SSTP SSTP client instance support ZeroTier ZeroTier VPN client support WireGuard WireGuard VPN client and server Tinc Encryption, authentication, compression; client & server Tailscale Encrypted point-to-point using the WireGuard protocol
OPC UA
Supported modes Client, Server Supported connection types TCP
MODBUS
Supported modes Server, Client Supported connection types TCP Custom registers MODBUS TCP custom register block requests (read/write to a file inside the router) to extend client functionality Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB first); 32-bit: float, INT, UINT (ABCD/DCBA/CDAB/BADC), HEX, ASCII
DATA TO SERVER
Protocol HTTP(S), MQTT, Azure MQTT Data to server Extract parameters from multiple sources/protocols and send to a single server; custom LUA scripting
MQTT GATEWAY
Modbus MQTT Gateway Send commands and receive data from MODBUS Server via MQTT broker
DNP3
Supported modes DNP3 Station, DNP3 Outstation Supported connection TCP
DLMS/COSEM
DLMS Support Standard protocol for utility meter data exchange Supported modes Client Supported connection types TCP
API
Teltonika Networks Web API (beta) Configurable endpoints to retrieve/change data. Docs: https://developers.teltonika-networks.com
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event/system/kernel logs, Internet status FOTA Firmware update from server; automatic notification SSH SSH (v1, v2) SMS SMS status, SMS configuration Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off Email Status alerts by email for various services TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT MQTT Broker, MQTT publisher SNMP SNMP (v1, v2, v3), SNMP Trap, brute-force protection JSON-RPC Management API over HTTP/HTTPS RMS Teltonika Remote Management System (RMS)
IOT PLATFORMS
ThingWorx Monitor: WAN Type/IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type Cumulocity – Cloud of Things Monitor: Device model/revision/serial, WAN Type/IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength; reboot & firmware upgrade actions Azure IoT Hub Configure via Data to Server to send parameters; Direct methods (RutOS API); Plug & Play with DPS for zero-touch provisioning AWS IoT Core Interact with AWS; Jobs support to call device API
SYSTEM CHARACTERISTICS
CPU MediaTek, Dual-Core, 880 MHz, MIPS1004Kc RAM 256 MB, DDR3 FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup FOTA Update FW RMS Update FW/configuration for multiple devices Keep settings Update FW without losing current configuration Factory settings reset Full factory reset restores all system settings to defaults
FIRMWARE CUSTOMISATION
Operating system RutOS (OpenWrt-based Linux OS) Supported languages Busybox shell, Lua, C, C++ Development tools SDK package with build environment GPL customization Create custom, branded firmware and web UI (colours, logos, etc.) Package Manager Install additional software on the device
LOCATION TRACKING
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS Coordinates Via WebUI, SMS, TAVL, RMS NMEA NMEA 0183 NTRIP Networked Transport of RTCM via Internet Protocol Server software TAVL, RMS Geofencing Multiple configurable geofence zones
INPUT / OUTPUT
Input 1 × Digital Input; 0–6 V = low, 8–50 V = high Output 1 × Digital Output; open collector; max 50 V, 300 mA Events Email, RMS, SMS I/O juggler Trigger events based on I/O conditions
POWER
Connector 4-pin industrial DC power socket Input voltage range 9–50 VDC; reverse polarity protection; surge protection >51 VDC 10 µs max PoE (passive) Power via LAN1 (Mode B), 9–50 VDC; not compatible with IEEE 802.3af/at/bt Power consumption Idle < 5 W; Max < 13 W
PHYSICAL INTERFACES
Ethernet 5 × RJ45 ports, 10/100/1000 Mbps I/Os 1 × Digital Input, 1 × Digital Output (4-pin power connector) Status LEDs 6 × connection status, 6 × connection strength, 10 × Ethernet port status, 4 × WAN status, 1 × Power, 2 × 2.4G & 5G Wi-Fi SIM 2 × SIM slots (Mini SIM – 2FF), 1.8 V/3 V Power 1 × 4-pin power connector Antennas 8 × SMA for Mobile, 2 × RP-SMA for Wi-Fi, 1 × SMA for GNSS Reset Reboot / User default reset / Factory reset button Other 1 × Grounding screw
PHYSICAL SPECIFICATION
Casing material Anodized aluminum housing and panels Dimensions (W × H × D) 132 × 44.2 × 95.1 mm Weight 560 g Mounting options DIN rail, wall mount, flat surface (kits required)
OPERATING ENVIRONMENT
Operating temperature −40 °C to 60 °C Operating humidity 10% to 90% non-condensing Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
Regulatory CE, UKCA, RCM, FCC, IC, EAC, UCRF, WEE
