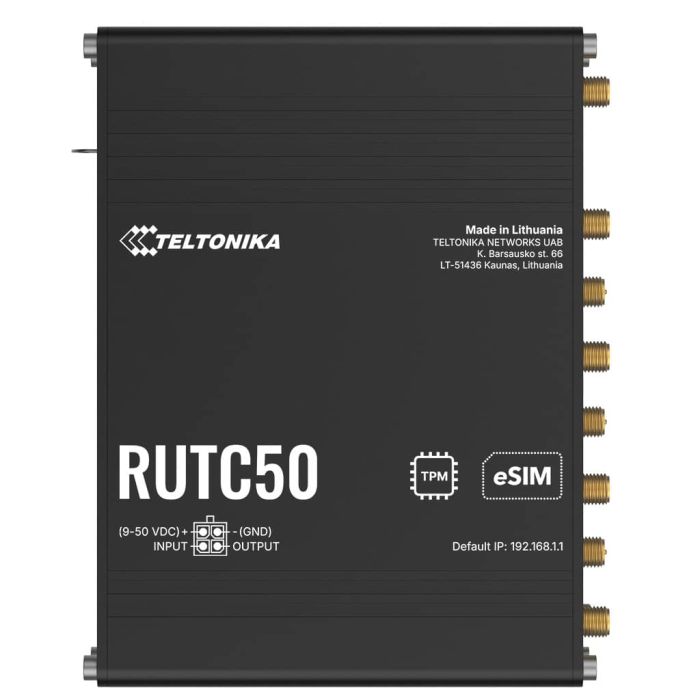

Teltonika RUTC50 5G Industrial Gateway

£513.00
In stock
SKU
TP-Router-RUTC50
Unleash the full potential of your edge applications with the RUTC50 5G router. This compact powerhouse combines ultra-fast 5G (up to 3.4 Gbps), dual-band Wi-Fi 6, and enhanced processing power with 1GB RAM and 8GB flash memory. Featuring dual SIM and eSIM for global, touch-free deployments, the RUTC50 delivers lightning-fast, low-latency communication for mission-critical operations. Rugged, powerful, and future-ready.



The Teltonika RUTC50 is a powerful industrial-grade 5G router designed to deliver high throughput, low latency and reliable wireless and wired connectivity for demanding environments. It supports 5G Sub-6GHz (both SA and NSA modes), offering download speeds up to ~3.4 Gbps, plus strong uplink performance. When 5G is unavailable, it falls back to 4G (Cat 20) and 3G. The wireless side is equipped with dual-band Wi-Fi 6 (2.4GHz & 5GHz) including multi-user MIMO, allowing for many devices to connect simultaneously.

For redundancy and resilience, it has dual-SIM with auto-failover, so switching networks can happen automatically (if signal weakens, data limit reached, etc.). On the wired side, it includes multiple Gigabit Ethernet ports. There is also GNSS built in for precise location tracking. Rugged design and remote management features (via Teltonika RMS etc.) make it suited to industrial, enterprise, smart city or IoT edge-use cases that need always-on connectivity with good wireless performance.

MOBILE
Mobile module 5G Sub-6 Ghz SA/NSA 2.4/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 19 1.6 Gbps DL, Cat 18 200 Mbps UL; 3G – 42 Mbps DL, 5.76 Mbps UL
eSIM* Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
*Feature availability varies by order code (RUTC50 *1****)
3GPP ReleaseRelease 16
SIM switch* 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
*Feature availability varies by order code (RUTC50 *0****)
SIM switch** 2 SIM cards and 1 eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
**Feature availability varies by order code (RUTC50 *1****)
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, SIM provider, operator, network type, cell ID, LAC, TAC, ARFCN, UARFCN, EARFCN
SMS SMS status, SMS configuration, EMAIL↔SMS, SMS↔EMAIL, SMS→HTTP, SMS→SMS, scheduled SMS, SMS autoreply, SMPP
USSDSupports sending and reading USSD messages
Block/Allow listOperator block/allow list (by country or separate operators)
Multiple PDNUse different PDNs for multiple network access and services
Band managementBand lock, used band status display
SIM idle protection servicePeriodically switch to unused SIM and establish data connection to prevent SIM blocking
SIM PIN code managementSet, change, or disable SIM PIN
APNAuto APN
BridgeDirect bridge between mobile ISP and LAN device
PassthroughAssign mobile WAN IP to a LAN device
Framed routingSupport an IP network behind 5G UE
WIRELESS
Wireless mode 802.11b/g/n/ac/ax (Wi-Fi 6) up to 2402 Mbps @5 GHz, 576 Mbps @2.4 GHz (Dual Band, MU-MIMO)
Wi-Fi security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, auto-cipher; client separation; EAP-TLS with PKCS#12; disable auto-reconnect; 802.11w PMF
SSID/ESSIDSSID stealth mode; MAC-based access control
WiFi usersUp to 512 simultaneous connections
Wireless connectivityMesh (802.11s), fast roaming (802.11r), BSS transition (802.11v), RRM (802.11k)
Wireless MAC filterAllowlist / Blocklist
Wireless QR code generatorScan to auto-join without credentials
TravelMateForward hotspot landing page to a subsequent connected device
ETHERNET
WAN1 × WAN 10/100/1000 Mbps; IEEE 802.3/802.3u/802.3az; auto MDI/MDIX
LAN4 × LAN 10/100/1000 Mbps; IEEE 802.3/802.3u/802.3az; auto MDI/MDIX
NETWORK
RoutingStatic; Dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP); Policy-based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
VoIP passthrough supportH.323 and SIP-ALG NAT helpers
Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP & ICMP
FirewallPort forward, traffic rules, custom rules, TTL customization
Firewall status pageView statistics, rules, counters
Port managementEnable/disable ports, auto-config on/off, change speed
Network topologyVisual representation of connected devices
DHCPStatic/dynamic allocation, relay, server config & status, static leases (MAC wildcards)
QoS / SQMPriority by source/destination, service, protocol or port; WMM; 802.11e
DDNS>77 providers; manual config supported
DNS over HTTPSDoH proxy
Network backupWi-Fi WAN, Mobile, VRRP, Wired failover
Load balancingBalance Internet traffic over multiple WANs
Hotspot Captive portal; internal/external RADIUS; MAC auth; SMS auth; SSO; landing pages; walled garden; user scripts; URL params; users/groups; limits; user mgmt; 9 customizable themes
Hotspot 2.0Seamless, secure, automatic connection to trusted Wi-Fi networks
SSHFSMount remote filesystem via SSH
Traffic ManagementReal-time monitoring, wireless signal charts, traffic usage history
Port MirroringMirror Ethernet traffic for analysis
SECURITY
802.1xPort-based network access control client
AuthenticationPSK, digital & X.509 certs, TACACS+, Internal/External RADIUS, IP & login block, time-based blocking, random password generator
FirewallPreconfigured via WebUI; unlimited via CLI; DMZ, NAT, NAT-T, NAT64
Attack preventionDDoS (SYN/SSH/HTTP/HTTPS), port scan (SYN-FIN, SYN-RST, X-mas, NULL, FIN)
VLANPort and tag-based separation
Mobile quota controlData limit, period, start time, warning, phone number
WEB filterBlacklist / Whitelist
Access controlFlexible access to SSH, Web, CLI, Telnet
TPMTPM 2.0 module
SSL certificate generationLet’s Encrypt, SCEP
VPN
OpenVPNMultiple clients and a server simultaneously; 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC/CFB/CFB1/CFB8/OFB/GCM, AES-192-CFB/CFB1/CFB8/OFB/CBC/GCM, AES-256-GCM/CFB/CFB1/CFB8/OFB/CBC
IPsecXFRM, IKEv1, IKEv2; 14 methods (3DES, DES, AES128/192/256, AES128/192/256 GCM8/12/16)
GREGRE tunnel; GRE over IPsec
PPTP, L2TPClient/Server; L2TPv3; L2TP over IPsec
StunnelTLS encryption wrapper proxy
DMVPNScalable IPsec VPNs; Phase 2/3; Dual Hub
SSTPSSTP client
ZeroTierZeroTier VPN client
WireGuardWireGuard client & server
TincEncryption, authentication, compression; client & server
TailscaleEncrypted point-to-point connections using WireGuard; simpler than traditional VPNs
OPC UA
Supported modesClient, Server
Supported connection typesTCP
MODBUS
Supported modesServer, Client
Supported connection typesTCP, USB
Custom registersMODBUS TCP custom register block requests (read/write to file)
Supported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB); 32-bit: float, INT, UINT (ABCD/DCBA/CDAB/BADC), HEX, ASCII
DATA TO SERVER
ProtocolHTTP(S), MQTT, Azure MQTT
Data to serverExtract parameters from multiple sources and protocols; send to a single server; custom LUA scripting
MQTT GATEWAY
Modbus MQTT GatewaySend commands / receive data from MODBUS Server via MQTT broker
DNP3
Supported modesStation, Outstation
Supported connectionTCP
DLMS/COSEM
DLMS SupportStandard protocol for utility meter data exchange
Supported modesClient
Supported connection typesTCP, USB
API
Teltonika Networks Web API Beta support; configurable endpoints to retrieve/change data. Docs: developers.teltonika-networks.com
MONITORING & MANAGEMENT
WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event/system/kernel logs, Internet status
FOTAFirmware update from server, automatic notification
SSHSSH (v1, v2)
SMSSMS status, configuration
CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
EmailStatus alerts for services
TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTTMQTT Broker, MQTT publisher
SNMPSNMP (v1, v2, v3), SNMP Trap, brute-force protection
JSON-RPCManagement API over HTTP/HTTPS
RMSTeltonika Remote Management System (RMS)
IOT PLATFORMS
ThingWorxMonitor: WAN Type/IP, Operator Name, Signal Strength, Network Type
Cumulocity / Cloud of ThingsMonitor: Model, Revision, Serial, WAN Type/IP, Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength; reboot & FW upgrade actions
Azure IoT HubData to Server to cloud; Direct Methods (RutOS API); Plug & Play with DPS (zero-touch provisioning)
AWS IoT CoreInteract with AWS; Jobs support (call device API)
DOCKER
Docker SupportRun isolated apps/services via Docker containers on the device
SYSTEM CHARACTERISTICS
CPUMediatek, Dual-core, 1.3 GHz, ARM Cortex A53
RAM*512MB DDR3
RAM**1GB, DDR4
FLASH storage*16MB serial NOR, 512MB serial NAND
FLASH storage**16MB serial NOR, 8GB eMMC
*Feature availability varies by order code (RUTC50 *0****)
**Feature availability varies by order code (RUTC50 *1****)
FIRMWARE / CONFIGURATION
WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
FOTAUpdate FW
RMSUpdate FW/configuration for multiple devices at once
Keep settingsUpdate FW without losing current configuration
Factory settings resetFull reset restores all settings to manufacturer defaults
FIRMWARE CUSTOMISATION
Operating systemRutOS (OpenWrt-based Linux OS)
Supported languagesBusybox shell, Lua, C, C++
Development toolsSDK package with build environment
GPL customizationCustom branded firmware and web UI (colours, logos, etc.)
Package ManagerInstall additional software on the device
LOCATION TRACKING
GNSSGPS, GLONASS, BeiDou, Galileo, QZSS
CoordinatesGNSS coordinates via WebUI, SMS, TAVL, RMS
NMEANMEA 0183
NTRIPNTRIP protocol
Server softwareTAVL, RMS
GeofencingConfigurable multiple geofence zones
USB
Data rateUSB 2.0
ApplicationsSamba share, USB-to-serial
External devicesExternal HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formatsFAT, FAT32, exFAT, NTFS (read-only), ext2/3/4
INPUT / OUTPUT
Input1 × Digital Input, 0–6 V = low, 8–50 V = high
Output1 × Digital Output, open collector, max 50 V / 300 mA
EventsEmail, RMS, SMS
I/O jugglerSet I/O conditions to initiate events
POWER
Connector4-pin industrial DC power socket
Input voltage range9–50 VDC; reverse polarity protection; surge/transient protection
PoE (passive)Power via LAN1; Mode B; 9–30 VDC (not IEEE 802.3af/at/bt). Available from HW rev 0003, batch 007
Power consumption*Idle < 4.5 W; Max < 13.5 W
Power consumption**Idle < 5.6 W; Max < 20.2 W
*Feature availability varies by order code (RUTC50 *0****)
**Feature availability varies by order code (RUTC50 *1****)
PHYSICAL INTERFACES
Ethernet5 × RJ45 ports, 10/100/1000 Mbps
I/Os1 × Digital Input, 1 × Digital Output on 4-pin power connector
Status LEDs4 × WAN status, 3 × Mobile type, 3 × Mobile strength, 8 × LAN status, 1 × Power, 2 × 2.4G/5G Wi-Fi, 2 × WAN
SIM2 × SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external holders, eSIM optional
Power1 × 4-pin power connector
Antennas4 × SMA (Mobile), 3 × RP-SMA (Wi-Fi), 1 × SMA (GNSS)
USB1 × USB-A for external devices
ResetReboot / User default reset / Factory reset button
Other1 × Grounding screw
PHYSICAL SPECIFICATION
Casing materialAnodized aluminum housing & panels
Dimensions (W×H×D)130.4 × 42.6 × 103.4 mm
Weight452 g
Mounting optionsDIN rail, wall mount, flat surface (kits required)
OPERATING ENVIRONMENT
Operating temperature-40 °C to 75 °C
Operating humidity10% to 90% non-condensing
Ingress Protection RatingIP30
REGULATORY & TYPE APPROVALS
Regulatory*REACH, RoHS, CE, UKCA, CB
Regulatory**CE/RED, UKCA, CB, RCM, EAC, UCRF, WEEE
Vehicle*ECE R118, ECE R10 (E-mark)
*Feature availability varies by order code (RUTC50 *0****)
**Feature availability varies by order code (RUTC50 *1****)
EMC EMISSIONS & IMMUNITY
Standards* EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN 61000-3-3:2013 + A1:2019 + A2:2021; EN IEC 61000-3-2:2019 + A1:2021; EN 301 489-1 V2.2.3; EN 301 489-3 V2.3.2; EN 301 489-17 V3.2.4; EN 301 489-19 V2.2.1; EN 301 489-52 V1.2.1
RF
Standards* EN 300 328 V2.2.2; EN 300 440 V2.2.1; EN 301 893 V2.1.1; EN 303 413 V1.2.1; EN 301 908-1 V15.2.1; EN 301 908-2 V13.1.1; EN 301 908-13 V13.2.1; Draft EN 301 908-25 V15.1.1_0.0.21
SAFETY
Standards*EN IEC 62368-1:2020 + A11:2020; EN IEC 62311:2020
SAFETY (ORDINARY LOCATIONS)
Standards*EN IEC 62368-1:2020 + A11:2020
*Feature availability varies by order code (RUTC50 *0****)
**Feature availability varies by order code (RUTC50 *1****)
