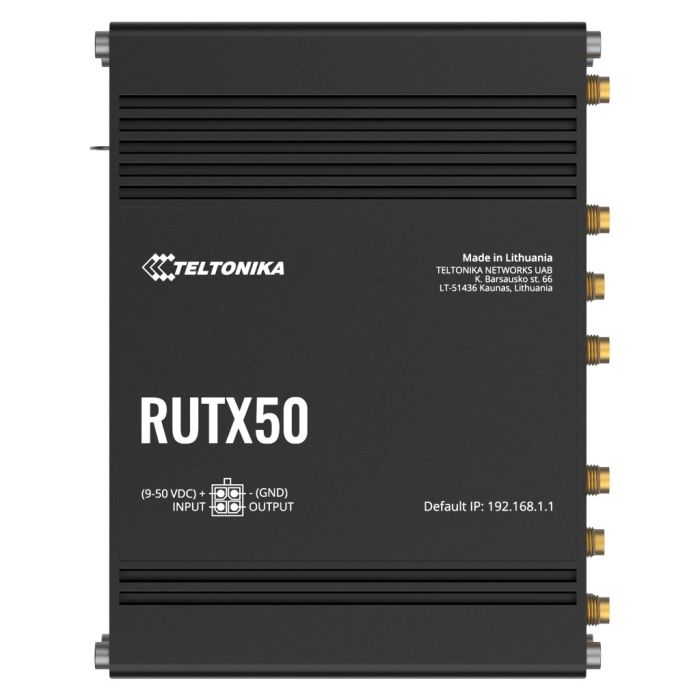

Teltonika RUTX50 5G Industrial Gateway

£336.00
In stock
SKU
TP-Router-RUTX50
The Teltonika RUTX50 is a dual-SIM multi-network router offering 5G mobile communication for high-speed and data-heavy applications. Together with 5x Gigabit Ethernet ports and dual-band Wi-Fi, it provides data connection redundancy with auto-failover. Backward compatibility and multiple interfaces allow for long-term expandability and upgrading options.

The Teltonika RUTX50 is a high-performance, multi-network industrial router built for demanding, data-heavy applications. It supports 5G (Sub-6GHz, SA & NSA) with downstream speeds of around 3.3 Gbps and robust upstream performance. It also offers backwards compatibility with 4G Cat-20 and 3G networks.

Dual-SIM capability with auto-failover ensures resilient cellular connectivity. On the local side, it includes 5 Gigabit Ethernet ports plus dual-band WiFi 5 (WiFi ac) for wireless access.

It’s designed with industrial robustness: solid hardware, wide operating temperature range, durable casing, and a full suite of software features (VPNs, remote management, monitoring, etc.). It covers use cases like edge connectivity, remote sites, large‐scale IoT, or any scenario where fast, reliable and redundant internet access is required.

MOBILE
Mobile module 5G Sub-6 Ghz SA/NSA 2.1/3.3 Gbps DL (4×4 MIMO), 900/600 Mbps UL (2×2); 4G LTE Cat 20 up to 2.0 Gbps DL / 200 Mbps UL; 3G up to 42 Mbps DL / 5.76 Mbps UL
3GPP ReleaseRelease 15/16 (depends on hardware version)
eSIM*Consumer eSIM; profile download & removal; up to 7 eSIM profiles; no data plans
*Feature availability varies by order code
SIM switch* Dual SIM and eSIM; auto-switch on weak signal, data/SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
*Feature availability varies by order code
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS SMS status/configuration, Email ↔ SMS, SMS ↔ Email, SMS → HTTP, SMS → SMS, scheduled SMS, autoreply, SMPP
USSDSend and read USSD messages
Block/Allow listOperator block/allow list (by country or operator)
Multiple PDNUse different PDNs for multiple access/services
Band managementBand lock, used band status display
SIM idle protectionPeriodically switch to unused SIM and establish data connection to prevent SIM blocking
SIM PIN codeSet, change, or disable SIM PIN
APNAuto APN
BridgeDirect bridge between mobile ISP and LAN device
PassthroughAssigns mobile WAN IP to a LAN device
Framed routingSupports an IP network behind 5G UE
WIRELESS
Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition; AP & STA
Wi-Fi security WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP; auto-cipher; client separation; EAP-TLS (PKCS#12); disable auto-reconnect; 802.11w PMF
SSID/ESSIDSSID stealth; MAC-based access control
Wi-Fi usersUp to 150 simultaneous connections
Wireless features Mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition (802.11v), RRM (802.11k)
Wireless MAC filterAllowlist, blocklist
QR code generatorScan to join without entering credentials
TravelMateForward hotspot landing page to subsequent device
ETHERNET
WAN1 × 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
LAN4 × 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
NETWORK
RoutingStatic, BGP, OSPFv2, RIP v1/v2, EIGRP, NHRP, Policy-based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN
VoIP passthroughH.323 & SIP-ALG NAT helpers
Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP & ICMP
FirewallPort forward, traffic rules, custom rules, TTL customization
Firewall status pageView statistics, rules, and counters
Port managementView/enable/disable ports, auto-config on/off, change speed
Network topologyVisual representation of connected devices
Hotspot Captive portal; internal/external RADIUS; RADIUS MAC auth; SMS/SSO auth; landing page; walled garden; user scripts; URL params; user groups; user/group limits; 9 customizable themes (upload/download)
DHCPStatic/dynamic allocation, relay, server config & status, static leases (MAC wildcards)
QoS / SQMPriority by source/destination, service, protocol or port; WMM; 802.11e
DDNS>77 providers; manual configuration supported
DNS over HTTPSDoH proxy
Network backupWi-Fi WAN, Mobile, VRRP, Wired — automatic Failover
Load balancingBalance traffic over multiple WANs
SSHFSMount remote filesystem via SSH
VRF supportInitial virtual routing and forwarding support
Traffic ManagementReal-time monitoring, wireless signal charts, usage history
SECURITY
802.1xPort-based network access control client
AuthenticationPre-shared key, digital & X.509 certs, TACACS+, Internal/External RADIUS, IP & login block, time-based blocking, random password generator
FirewallPreconfigured rules via WebUI; unlimited via CLI; DMZ, NAT, NAT-T, NAT64
Attack preventionDDoS (SYN, SSH, HTTP/HTTPS), port scan (SYN-FIN, SYN-RST, X-mas, NULL, FIN)
VLANPort- and tag-based separation
Mobile quota controlData limit, period, start time, warning limit, phone number
WEB filterBlacklist / Whitelist
Access controlFlexible control of SSH, Web interface, CLI, Telnet
TPM*TPM 2.0 identification & authentication module
*Feature availability varies by order code
SSL certificate generationLet’s Encrypt, SCEP
VPN
OpenVPNMultiple clients and server simultaneously; 27 encryption methods
OpenVPN Encryption DES-CBC 64; RC2-CBC 128; DES-EDE-CBC 128; DES-EDE3-CBC 192; DESX-CBC 192; BF-CBC 128; RC2-40-CBC 40; CAST5-CBC 128; RC2-64-CBC 64; AES-128 (CBC/CFB/CFB1/CFB8/OFB/GCM); AES-192 (CBC/CFB/CFB1/CFB8/OFB/GCM); AES-256 (CBC/CFB/CFB1/CFB8/OFB/GCM)
IPsecXFRM, IKEv1, IKEv2; 14 methods incl. 3DES, DES, AES128/192/256, AES-GCM-8/12/16
GREGRE tunnel; GRE over IPsec
PPTP, L2TPClient/Server; L2TPv3; L2TP over IPsec
StunnelTLS wrapper for existing clients/servers
DMVPNScalable IPsec VPNs; Phase 2/3; Dual Hub
SSTPSSTP client
ZeroTierZeroTier VPN client
WireGuardClient & server
TincEncryption, authentication, compression; client & server
TailscaleEncrypted point-to-point via WireGuard protocol
OPC UA
Supported modesClient, Server
Supported connection typesTCP
MODBUS
Supported modesServer, Client
Supported connection typesTCP, USB
Custom registersMODBUS TCP custom register block requests (read/write to file inside router)
Supported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB); 32-bit: float, INT, UINT (ABCD/DCBA/CDAB/BADC), HEX, ASCII
DATA TO SERVER
ProtocolHTTP(S), MQTT, Azure MQTT
Data to serverExtract parameters from multiple sources/protocols and send to one server; custom LUA scripting
MQTT GATEWAY
Modbus MQTT GatewaySend commands / receive data from MODBUS Server via MQTT broker
DNP3
Supported modesStation, Outstation
Supported connectionTCP, USB
DLMS/COSEM
DLMS SupportStandard protocol for utility meter data exchange
Supported modesClient
Supported connection typesTCP, USB
API
Teltonika Networks Web API (beta) Configurable endpoints to retrieve/change data. Docs: https://developers.teltonika-networks.com
MONITORING & MANAGEMENT
WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, FW update availability notifications, event/system/kernel logs, Internet status
FOTAFirmware update from server; automatic notification
SSHSSH (v1, v2)
SMSSMS status, SMS configuration
CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with timer, Wi-Fi on/off
TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTTMQTT Broker, MQTT publisher
SNMPSNMP v1/v2/v3, SNMP Trap, brute-force protection
JSON-RPCManagement API over HTTP/HTTPS
RMSTeltonika Remote Management System (RMS)
IOT PLATFORMS
ThingWorxMonitor WAN Type/IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity – Cloud of ThingsMonitor model/revision/serial, WAN Type/IP, mobile Cell ID, ICCID, IMEI, connection type, operator, signal strength; reboot & firmware upgrade actions
Azure IoT HubConfigure via Data to Server; Direct methods (RutOS API); Plug & Play with DPS (zero-touch provisioning)
AWS IoT CoreInteract with AWS; Jobs support to call device API
SYSTEM CHARACTERISTICS
CPUQuad-core ARM Cortex-A7, 717 MHz
RAM256 MB
FLASH storage256 MB
FIRMWARE / CONFIGURATION
WEB UIUpdate FW from file, check FW on server, configuration profiles, backup
FOTAUpdate FW
RMSUpdate FW/configuration for multiple devices
Keep settingsUpdate FW without losing configuration
Factory settings resetFull restore to manufacturer defaults
FIRMWARE CUSTOMISATION
Operating systemRutOS (OpenWrt-based Linux)
Supported languagesBusybox shell, Lua, C, C++, Python, Java (via Package Manager)
Development toolsSDK package with build environment
GPL customizationCustom branded firmware and web UI (colours, logos, etc.)
Package ManagerInstall additional software on the device
LOCATION TRACKING
GNSSGPS, GLONASS, BeiDou, Galileo, QZSS
CoordinatesVia WebUI, SMS, TAVL, RMS
NMEANMEA 0183
NTRIPNTRIP protocol (RTCM over IP)
Server softwareTAVL, RMS
GeofencingMultiple configurable geofence zones
USB
Data rateUSB 2.0
ApplicationsSamba share, USB-to-serial
External devicesHDD, flash drive, additional modem, printer, USB-serial adapter
Storage formatsFAT, FAT32, exFAT, NTFS (read-only), ext2/3/4
INPUT / OUTPUT
Input1 × Digital Input; 0–6 V = low, 8–30 V = high
Output1 × Digital Output; open collector; max 30 V, 300 mA
EventsEmail, RMS, SMS
I/O jugglerSet I/O conditions to initiate events
POWER
Connector4-pin industrial DC power socket
Input voltage range9–50 VDC; reverse polarity protection; surge protection >51 VDC 10 µs max
PoE (passive)Power via LAN1 (Mode B), 9–50 VDC; not compatible with IEEE 802.3af/at/bt
Power consumptionIdle < 4 W; Max < 16.5 W
PHYSICAL INTERFACES
Ethernet5 × RJ45 ports, 10/100/1000 Mbps
I/Os1 × Digital Input, 1 × Digital Output on 4-pin power connector
Status LEDs4 × WAN type, 3 × Mobile connection type, 3 × Mobile signal strength, 10 × Ethernet port status, 1 × Power, 2 × 2.4G & 5G Wi-Fi
SIM2 × SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power1 × 4-pin power connector
Antennas4 × SMA for Mobile, 2 × RP-SMA for Wi-Fi, 1 × SMA for GNNS
USB1 × USB-A port for external devices
ResetReboot / User default reset / Factory reset button
Other1 × Grounding screw
PHYSICAL SPECIFICATION
Casing materialAluminium housing
Dimensions (W × H × D)132 × 44.2 × 95.1 mm
Weight533 g
Mounting optionsDIN rail, wall mount, flat surface (kits required)
OPERATING ENVIRONMENT
Operating temperature−40 °C to 75 °C
Operating humidity10% to 90% non-condensing
Ingress Protection RatingIP30
REGULATORY & TYPE APPROVALS
RegulatoryCE/RED, UKCA, RCM, IMDA, CB, E-mark, SIRIM, ETSI EN 303 645, SDPPI (POSTEL)
OperatorNOS (Portugal)
EMC EMISSIONS & IMMUNITY
Standards EN 55032:2015 + A11:2021 + A1:2020; EN 55035:2017 + A11:2020; EN IEC 61000-3-2:2019 + A1:2021; EN 61000-3-3:2013 + A1:2019 + A2:2021; EN 301 489-1 V2.2.3; EN 301 489-3 V2.1.1; EN 301 489-17 V3.2.4; EN 301 489-19 V2.2.1; EN 301 489-52 V1.2.1
ESDEN 61000-4-2:2009
Radiated ImmunityEN IEC 61000-4-3:2020
EFTEN 61000-4-4:2012
Surge ImmunityEN 61000-4-5:2014 + A1:2017
CSEN 61000-4-6:2014
DIPEN IEC 61000-4-11:2020
RF
Standards EN 300 328 V2.2.2; EN 300 440 V2.2.1; EN 301 893 V2.1.1; EN 301 908-1 V13.1.1; EN 301 908-2 V13.1.1; EN 301 908-13 V13.1.1; EN 301 908-25 V15.1.1_15.0.6; EN 303 413 V1.2.1
SAFETY
Standards CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020; RCM: AS/NZS 62368.1:2022; CB: IEC 62368-1:2018
