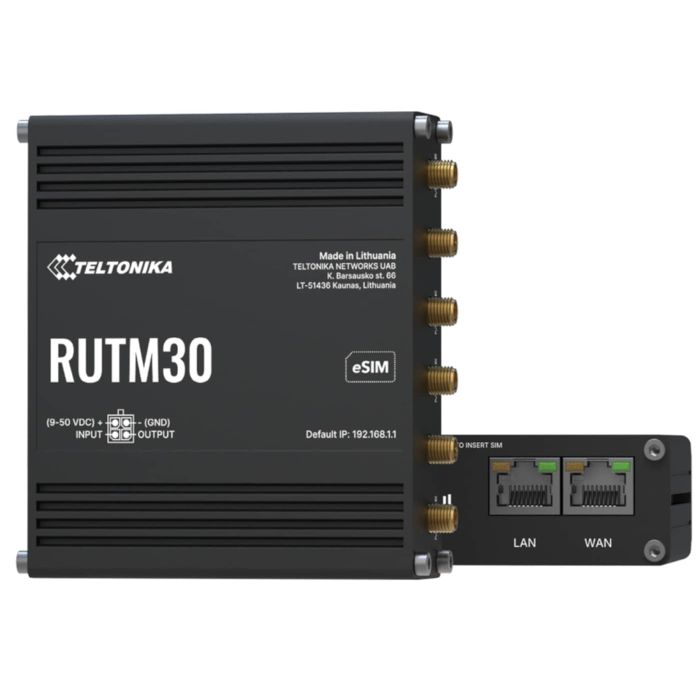

Teltonika RUTM30 5G Industrial Gateway

£306.45

In stock

SKU

TP-Router-RUTM30

The Teltonika RUTM30 WiFi 5 5G/4G LTE Cat 19 Router is a compact, dual-SIM, multi-network device with eSIM support, designed to deliver high-speed 5G connectivity for demanding data applications. It features two Gigabit Ethernet ports and dual-band WiFi, ensuring connection redundancy with automatic failover. Thanks to its backward compatibility and multiple interface options, it offers excellent scalability and upgrade potential. The RUTM30 is ideal for IoT and M2M deployments that require fast connectivity, simple installation, dependable performance, and remote management capabilities.

The Teltonika RUTM30 brings carrier-grade features to compact deployments, combining dual-SIM flexibility (with optional eSIM) and robust industrial design for always-on connectivity. Built on RutOS, it layers enterprise networking, dynamic routing, QoS/SQM, VRRP failover, and load balancing, on top of 5G/4G access, so your WAN stays stable even in busy or remote sites.

Dual-band Wi-Fi 5 (Wave 2, MU-MIMO) provides fast local access, while two Gigabit ports simplify edge integration with existing switches, PLCs, cameras, or gateways.

For security, the router supports firewalls, 802.1X, VLAN segmentation, and a full VPN stack (WireGuard, IPsec, OpenVPN, and more) to protect data in transit. Centralized tools, Teltonika RMS, TR-069, SNMP, and a WebUI/CLI/API, make provisioning and updates straightforward at scale.

With wide-range DC power, DIN-rail mounting options, and industrial temperature tolerance, the RUTM30 is engineered for continuous operation in IoT/M2M, retail, transport, and smart-infrastructure projects.

MOBILE

Mobile module	5G Sub-6Ghz SA/NSA: 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE: Cat 19 1.6Gbps DL, Cat 18 200Mbps UL; 3G: 42 Mbps DL, 5.76Mbps UL
3GPP Release	Release 16
eSIM	Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch	2 x 2FF SIM and 1 x eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
Status	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS	SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow list	Operator block/allow list (by country or separate operators)
Multiple PDN	Possibility to use different PDNs for multiple network access and services
Band management	Band lock, Used band status display
SIM idle protection service	Configure router to periodically switch to the unused SIM and establish a data connection to prevent SIM blocking
SIM PIN code management	Set, change, or disable the SIM card’s PIN
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN
Framed routing	Framed routing: support an IP network behind 5G UE

WIRELESS

Wireless mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security	WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID	SSID stealth mode and access control based on MAC address
Wi-Fi users	Up to 150 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter	Allowlist, blocklist
Wireless QR code generator	Once scanned, a user will automatically enter your network without needing to input login information
TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connected device

ETHERNET

WAN	1 x WAN port 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
LAN	1 x LAN port 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

NETWORK

Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough support	H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page	View all your Firewall statistics, rules, and rule counters
Port management	View device ports, enable/disable, auto-configuration on/off, change transmission speed, etc.
Network topology	Visual representation of your network, showing which devices are connected to which other devices
Hotspot	Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes with upload/download
Hotspot 2.0	Seamless, secure, automatic connection to trusted wireless networks
DHCP	Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)	Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS	Supported >77 service providers, others can be configured manually
DNS over HTTPS	DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup	Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing	Balance Internet traffic over multiple WAN connections
SSHFS	Possibility to mount remote file system via SSH protocol
VRF support	Initial virtual routing and forwarding (VRF) support
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history

SECURITY

Firewall	Preconfigured firewall rules via WebUI; unlimited firewall configuration via CLI; DMZ, NAT, NAT-T, NAT64
Attack prevention	DDOS prevention (SYN flood, SSH, HTTP/HTTPS), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN	Port and tag-based VLAN separation
Mobile quota control	Custom data limits for SIM card
WEB filter	Blacklist for blocking unwanted websites; Whitelist for allowed-only sites
Access control	Flexible access control of SSH, Web interface, CLI and Telnet
TPM	Identification and authentication module, TPM 2.0 standard
Certificate Manager	Certificate creation tool for CA, server, client, Let’s Encrypt, SCEP certificates
802.1x	Port-based network access control client

VPN

OpenVPN	Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption	DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC/CFB/CFB1/CFB8/OFB/GCM, AES-192-CFB/CFB1/CFB8/OFB/CBC/GCM, AES-256-GCM/CFB/CFB1/CFB8/OFB/CBC
IPsec	XFRM, IKEv1, IKEv2, with 14 methods (3DES, DES, AES128/192/256, AES128GCM8/12/16, AES192GCM8/12/16, AES256GCM8/12/16)
GRE	GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP	Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel	Proxy adding TLS encryption without code changes
DMVPN	Scalable IPsec VPNs, Phase 2 & Phase 3, Dual Hub support
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Encryption, authentication and compression; client and server
Tailscale	Speed, stability, simplicity over traditional VPNs; encrypted P2P using WireGuard

OPC UA

Supported modes	Client, Server
Supported connection types	TCP

MQTT GATEWAY

Modbus MQTT Gateway

Allows sending commands and receiving data from MODBUS Server through MQTT broker

MODBUS

Supported modes	Server, Client
Supported connection types	TCP
Custom registers	MODBUS TCP custom register block requests (read/write to a file inside the router) to extend MODBUS TCP Client functionality
Supported data formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII

DATA TO SERVER

Protocol	HTTP(S), MQTT, Azure MQTT
Data to server	Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting

DNP3

Supported modes	Station, Outstation
Supported connection	TCP

DLMS/COSEM

DLMS Support	DLMS - standard protocol for utility meter data exchange
Supported modes	Client
Supported connection types	TCP

API

Teltonika Networks Web API (beta) support

Expand your device’s possibilities by using configurable API endpoints to retrieve or change data. Docs: https://developers.teltonika-networks.com

MONITORING & MANAGEMENT

WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
SMS	SMS status, SMS configuration
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
Email	Receive email message status alerts of various services
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC	Management API over HTTP/HTTPS
MODBUS	MODBUS TCP status/control
RMS	Teltonika Remote Management System (RMS)

IOT PLATFORMS

ThingWorx	Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things	Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub	Can be configured with Data to Server to send all available parameters to the cloud. Direct method support for RutOS API calls. Plug and Play with DPS for zero-touch provisioning
AWS IoT Core	Interact with AWS cloud platform. Jobs support to call the device’s API

SYSTEM CHARACTERISTICS

CPU	MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM	256 MB, DDR3
FLASH storage	16 MB serial NOR flash, 256 MB serial NAND flash

FIRMWARE / CONFIGURATION

WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update FW
RMS	Update FW/configuration for multiple devices at once
Keep settings	Update FW without losing current configuration
Factory settings reset	A full factory reset restores all system settings (IP, PIN, user data) to default

FIRMWARE CUSTOMISATION

Operating system	RutOS (OpenWrt based Linux OS)
Supported languages	Busybox shell, Lua, C, C++
Development tools	SDK package with build environment provided
GPL customization	Create custom, branded firmware and web application (colours, logos, etc.)

INPUT / OUTPUT

Configurable I/O	2 x Configurable digital Inputs/Outputs on 4-pin power connector. DI: 0–6 V = low, 8–50 V = high. DO: Open collector, max 30 V, 300 mA.
Events	Email, RMS, SMS
I/O juggler	Set I/O conditions to initiate event

POWER

Connector	4-pin industrial DC power socket
Input voltage range	9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)	Power via LAN port, Mode B, 9 - 50 VDC; not compatible with IEEE802.3af/at/bt
Power consumption	Idle: <3.9 W, Max: <9 W

PHYSICAL INTERFACES

Ethernet	2 x RJ45 ports, 10/100/1000 Mbps
I/O’s	2 x Configurable digital I/O on 4-pin power connector
Status LEDs	1 x Mobile connection type (RGB), 1 x Mobile connection strength (RGB), 4 x LAN status, 1 x Power
SIM	2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, internal SIM holders
Power	1 x 4-pin power connector
Antennas	4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi
Reset	Reboot / User default reset / Factory reset button

PHYSICAL SPECIFICATION

Casing material	Anodized aluminum housing and panels
Dimensions (W x H x D)	100 x 30 x 93.7 mm
Weight	319 g
Mounting options	DIN rail, wall mount, flat surface (all require additional kit)

OPERATING ENVIRONMENT

Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

REGULATORY & TYPE APPROVALS

Regulatory

CE, UKCA, CB, EAC, UCRF, RCM, R-NZ, WEEE

EMC EMISSIONS & IMMUNITY

EN 55032	2015 + A11:2020 + A1:2020
EN 55035	2017 + A11:2020
EN IEC 61000-3-2	2019 + A1:2021
EN 301 489-1	V2.2.3
EN 301 489-3	V2.3.2
EN 301 489-17	V3.2.4
EN 301 489-52	V1.2.1

EN 300 328	V2.2.2
EN 300 440	V2.2.1
EN 301 893	V2.1.1
EN 301 908-1	V15.2.1
EN 301 908-2	V13.1.1
EN 301 908-13	V13.2.1
EN 301 908-25	V15.1.1

Downloads

RUTM30 Flyer (EN) - Open Here
RUTM30 Datasheet (EN) - Open Here
RUTM30 Quick Start Guide (EN) - Open Here
Firmware Downloads - Open Here
RUTM30 User Manual - Open Here
Certifications & Approvals - Open Here
Product Change Notifications - Open Here
SDK Downloads - Open Here
GPL Downloads - Open Here
RUTM30 3D Models - Open Here
